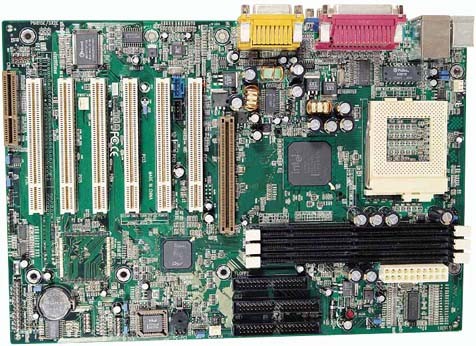

Legend QDI Synactix  2E

Vielen Dank an Legend QDI für die Bereitstellung des Mainboards zum testen.
Lieferumfang
  • Mainboard Synactix 2E
  • 1x externer Com Port
  • 1x  UDMA 66 Kabel
  • 1x Floppy Kabel
  • Treiber CD
  • Handbuch
  • ATX Anschlussblende
Technische Details/Herstellerangaben
CPU Support
  • Intel Celeron/CeleronII/Pentium III (Coppermine) (PPGA & FCPGA)
Chipsatz
  • North bridge: Intel 82815GMCH
  • South bridge: Intel 82801ICH2
Form Factor
  • ATX – 305mm x 210mm
Speicher
  • Three 168 pin 3.3V PC133 DIMM sockets
  • Supports up to 512MB SDRAM
  • Supports 100/133 MHz Synchronous DRAM
Slots
  • 1x AGP / 6xPCI/1xCNR
Graphics
  • AGP 2X 3D Grafikbeschleunigung
    Unterstützt AIMM (AGP In-line Memory Module)
Onboard Audio
  • AC'97 2.1 Compliant
I/O Feature
  • 1 Enhanced Parallel Port Support EPP/ECP/SPP
  • 1 PS/2 keyboard port
  • 1 PS/2 mouse port
  • 4 USB ports support USB1.1
  • 1 Speaker+ 1 Line in+ 1 Mic
  • 1 Game port
  • All I/O ports can be enabled/disabled by BIOS setup


FSB Einstellmöglichkeiten
  • 66/68/75/80/100/105/110/114/117/122/127/129/133/140/150/166 Mhz
V Core
  • Auto Detect - 1.3V-2.0V
Bios
  • Licensed advanced AWARD BIOS
    Supports ACPI and OS directed power management
Technische Details/Herstellerangaben
